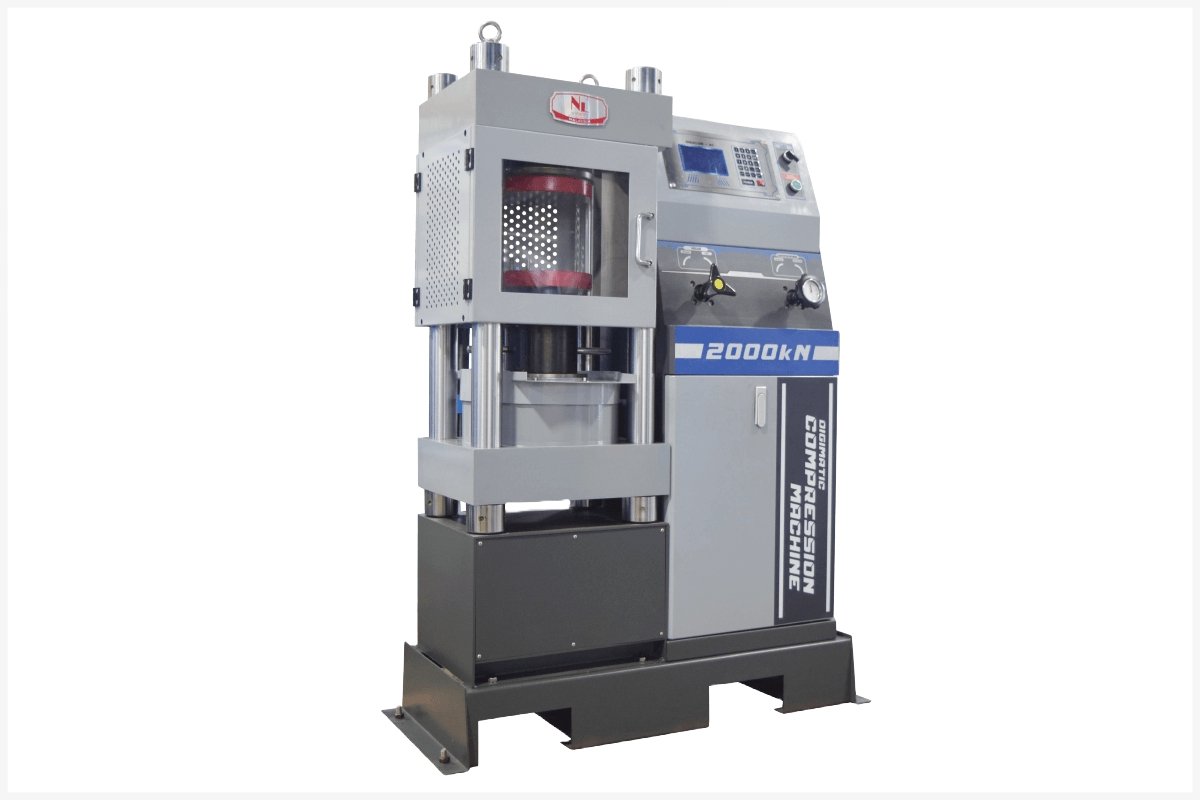

Digimatic Compression Machine 2000kN
NL Digimatic Compression Machine are special designed extremely strong and oversized to grant high rigidity and stability during testing. With a fixed upper head carring a ball-seated platen and base platen with 150 mm cube centering guide pin. Equipped with analogue loading speed indication knob.
Downloads:
-
Warranty 1 year
-
Free 14-Day returns
Description
Unique Feature :
- Front and side safety enclosed
- Rapid approach system for time saving
- Grade 1.0 compression accuracy
- Piston anti-over travel limit switch

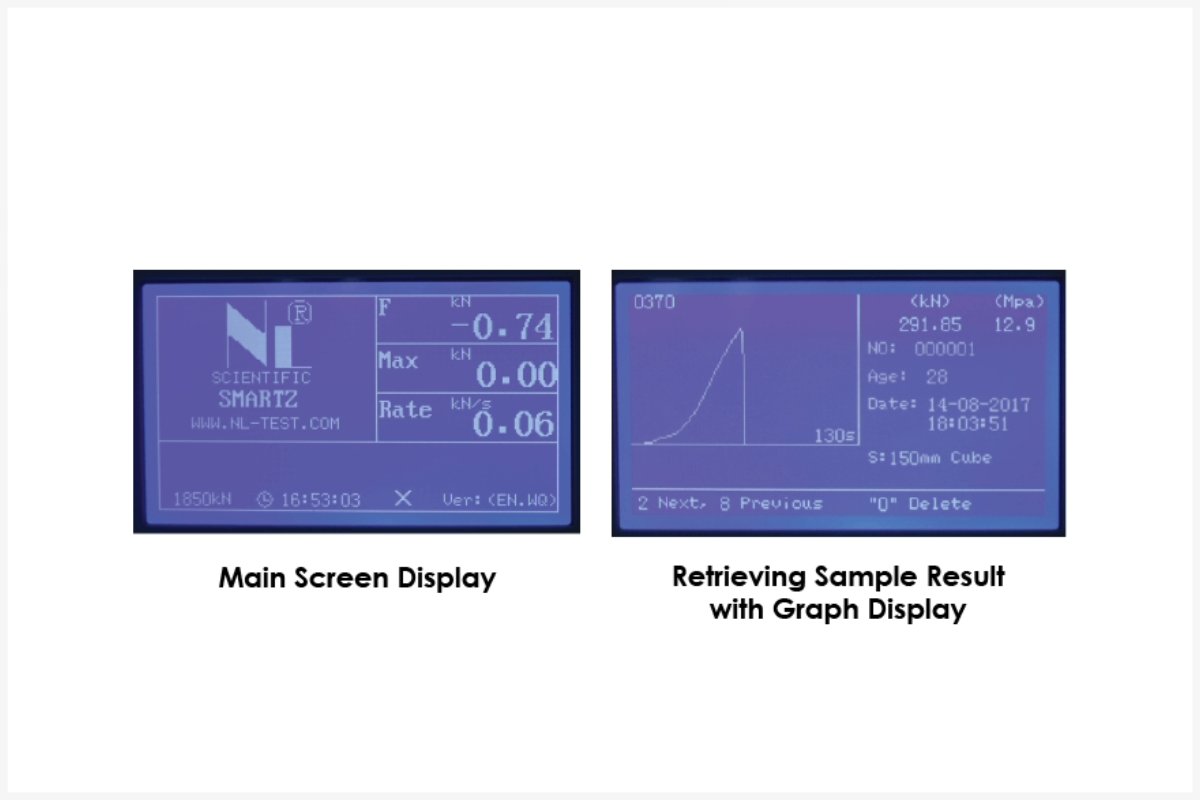

Digimatic multi-function controller :
- Force value in kN & Mpa
- Max. force hold facility with real-time force vs time graft display
- Multiple testing programs can be selected
- Auto result saving up to 500 specimen
- RS 232 port for instant result printing (Mini printer c/w cable NEED order separately
- 115 x 65 mm high-resolution LED screen
Specification
Overview
| Weight | 625 kg |
|---|---|
| Dimensions | 101 × 43 × 148 cm |
| Brand |
Nl Test |
| Model number |
NL 4000 X / 032G |
| Max Vertical Clearance (mm) |
400 mm |
|---|---|
| Max Horizontal Clearance (mm) |
285 mm |
| Capacity |
2000kN |
| Low Range Sensitivity |
0 – 999 x 0.01kN |
| High Range Sensitivity |
1000 – 2000 x 0.1kN |
| Platen Sizes (mm) |
216 mm |
| Piston Ram Diameter |
250 mm |
| Max Ram Travel (mm) |
50 |
| Column Diameter |
65 mm |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
