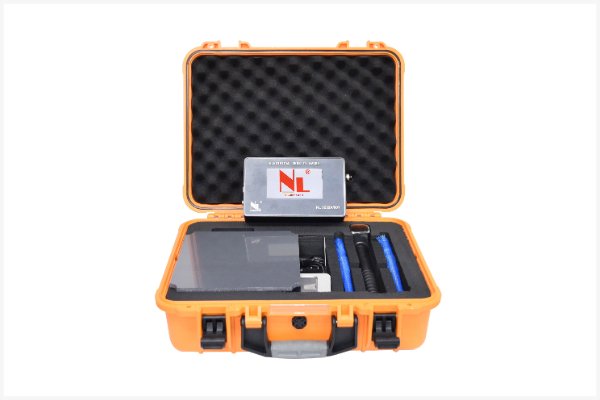

Electrical Density Gauge NL 5032 X / 001
The NL 5032 X / 001 is a revolutionary electrical density gauge (EDG) designed to measure both moisture and density of compacted soils with unmatched ease and safety. Perfect for road construction, foundation testing, and any application requiring precise soil analysis
-
Warranty 1 year
-
Free 14-Day returns
Description
ASTM D7698, ASTM D1556, ASTM D2167, ASTM 2937, ASTM 4564, ASTM 6938, ASTM D 2216, ASTM D 4643, ASTM D 4744, ASTM D 4959
Soil Moisture & Density
The Electrical Density Gauge (EDG) is a nuclear-free alternative for determining the moisture and density of compacted soils used in road beds and foundations. The EDG is a portable, battery-powered instrument capable of being used anywhere without the concerns and regulations associated with nuclear safety. Its user-friendly, step-by-step menu guides the user through each step of the testing procedure and cautions the user when values do not correspond to established curves for the material being tested.
Technical Specifications :
| Model | NL 5032 X / 001 |
| Alternate Code | EDG – IS |
| Soil Compaction Range | Standard field compaction range |
| Test Range Depth | 30 cm |
| Control Device | Compact steel case with touch screen |

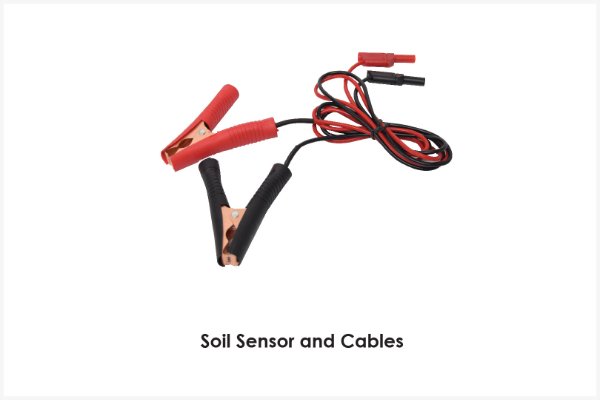

| Soil Sensor Probe | Internal Built-In |
| Data Transfer | USB Port or Bluetooth (Optional) |
| GPS Accuracy | 3 meters (optional) |
| Wet Density Range | Typical Compacted Earth Sites Range |
| Dry Density Range | Within 3% of standard tests |
| Moisture Content Range | Typical Compacted Earth Sites Range |
| Moisture Content Accuracy | Within 2 % of standard tests |
| Operating Temperature | 0 – 50 ˚C |
| Ambient Operating Humidity | 5 – 90 %, non-condensing |
| Power | Li Ion Battery (AAA Battery Optional) |
| Battery Life | Approx. 20 Hours |
| Battery Charger | 240 V 50/60Hz |
| Case Dimensions | 420(L) x 330(W) x 220(H) mm |
| Weight | 5.5 kg |
Specification
Overview
| Weight | 5.5 kg |
|---|---|
| Brand |
Nl Test |
| Model number |
NL 5032 X / 001 |
| BATTERY |
Approx. 20 Hours |
|---|---|
| Battery Type |
Li Ion Battery (AAA Battery Optional) |
