Electrical Drum Mixer NL 4025 X / 007A & 012
Whether you’re a professional contractor or a DIY enthusiast, the NL 4025 X / 007A & 012 is the perfect choice for tackling your concrete mixing needs. Get yours today and experience the difference of reliable power and unmatched efficiency!
-
Warranty 1 year
-
Free 14-Day returns
Description
The characteristics of concrete mixer :
- Suitable for field mixes of low / medium strength concrete.
- Steering system and reinforced tow bar for safe and easy movement.

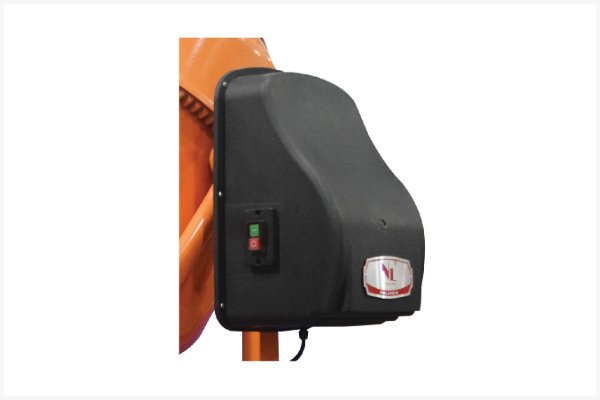

- Device for absorbing vibrations: it reduces to the least the vibrations produced by electrical motor, for a more noiseless machine that has a long duration in time.
- Telescopic legs for an absolute stability of the machine.
Technical Specifications :
| Model Number | NL 4025 X / 007A | NL 4025 X / 0012 |
| Drum Capacity | 120 L | 200 L |
| Max. Mixing Capacity | 96 L | 160 L |
| Drum Rotation Speed | 28 ~ 34 RPM | 28 ~ 34 RPM |
| Power | 240 V, 50 / 60 Hz, 650 W, 1Ph | 240 V, 50 / 60 Hz, 1000 W, 1Ph |
| Dimension (mm) | 1080 (L) x 680 (W) x 1150 (H) | 1200 (L) x 680 (W) x 1400 (H) |
| Gross Weight / Net Weight | 52 / 56 kg | 68.5 / 72.5 kg |
Specification
Overview
| Brand |
Nl Test |
|---|---|
| Model number |
NL 4025 X / 0012, NL 4025 X / 007A |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
|---|
