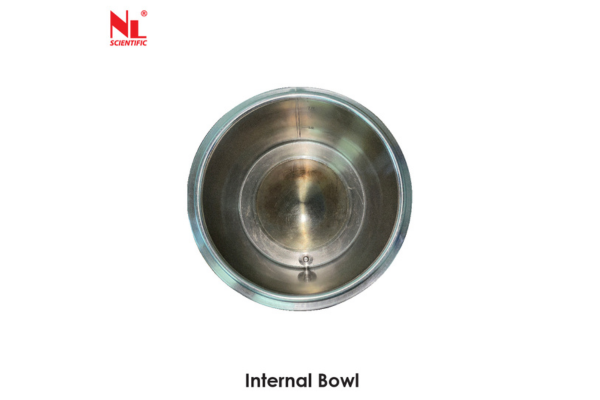

Melting Pot 7 Litres NL 4009 X / 010
-
Warranty 1 year
-
Free 14-Day returns
Description
Compound Melting
Designed for melting capping compounds, paraffin, and similar materials, compound melting pots feature an adjustable thermostat to deliver close temperature control automatically.
Specification
Overview
| Weight | 4 kg |
|---|---|
| Dimensions | 28 × 28 × 35 cm |
| Brand |
Nl Test |
| Model |
NL 4009 X / 010 |
| Capacity |
7 Litres |
|---|---|
| Temperature range |
50°C to 260°C |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
| Rated Power |
1500 W |
Related Products
ADR Touch SOLO 3000 BS EN Compression Machine with Digital Readout and Self Centring Platens.
In stock
SKU:
CT004
| Weight | 595 kg |
|---|---|
| Dimensions | 41 × 63 × 120 cm |
| Brand |
ELE International |
| Frame Type |
Welded |
| Capacity |
3000kN |
| Max Vertical Clearance (mm) |
340 |
| Max Horizontal Clearance (mm) |
310 |
| Platen Sizes (mm) |
Lower 220 sq, Upper 300 dia |
| Max Ram Travel (mm) |
50 |
| Cubes (Concrete) (mm) |
Up to 200 |
| Cylinders (Concrete) (mm) |
Up to 160 x 320 |
| Blocks |
Via optional Platen Handling System |
| Flexural Testing |
Via Flexural Frame |
| TFV & ACV |
Yes |
| Rapid Approach |
Yes |
| Hydraulic Pump |
Variable Output |
| Resolution |
145 mm (5.7”) Touch Screen with Graphical Display |
| Load v Time, Goodness of Test |
Yes |
| Analysis of Trend Data |
Yes |
| Multiple Language Support |
4 |
| External PC |
Yes, using custom PC App |
| Download Test Data |
Yes, using custom PC App |
| Printer |
Optional External Printer + Print from PC |
| Memory Storage |
2GB = Stores over a million tests + SD card |
Computerized Compression Machine 3000kN
In stock
SKU:
CT023
| Weight | 1000 kg |
|---|---|
| Dimensions | 145 × 62 × 160 cm |
| Brand |
Nl Test |
| Model number |
NL 4000 X / 035N |
| Max Vertical Clearance (mm) |
373 mm |
| Max Horizontal Clearance (mm) |
270 mm |
| Capacity |
3000kN |
| Platen Sizes (mm) |
295 mm |
| Piston Ram Diameter |
250 mm |
| Max Ram Travel (mm) |
60 mm |
| Column Diameter |
Ø77.5 mm |
| Accuracy |
Class 1 |
| Relative Error |
±1% |
| Repeatability Relative Error |
1% |
| Resolution |
0.1 – 0.001 kN |
| Sensor Accuracy |
0.1% |
| Max. Hydraulic Working Pressure |
50 Mpa |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
Fully Automatic Compression Machine NL 4000 X / 034HS
In stock
SKU:
CT024
| Weight | 810 kg |
|---|---|
| Dimensions | 103 × 59 × 143 cm |
| Brand |
Nl Test |
| Model number |
NL 4000 X / 034HS |
| Capacity |
2000kN |
| Max Horizontal Clearance (mm) |
460 mm |
| Relative Error |
±1% |
| Platen Sizes (mm) |
295 mm |
| Test Force Measurement Range (kN) |
40 – 2000 |
| Test Force Resolution |
1/300000 FS |
| Speed Control Accuracy Error |
≤ ±2 % Set Value |
| Piston Movement Direction |
Bidirectional Cylinder |
| Max. Rising Speed of Piston |
50 mm/min |
| Max. Piston Stroke |
250 mm |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
