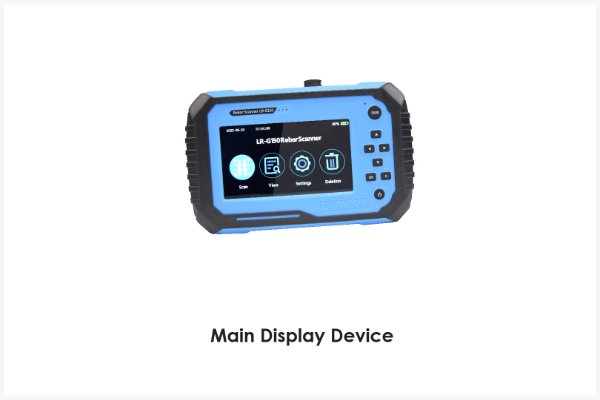

Rebar Scanner NL 4041 X / 003
The Rebar Scanner is a portable intelligent non-destructive testing instrument. It is used in the structural inspection of reinforced concrete. Ability to carry out accurate testing on measuring depth of rebar cover and diameter of rebar on the surface of reinforced concrete and ability to analyse distribution of the rebar. The ergonomics design, make it easy to use for long hours. The host is equipped with touchable full colour LCD Screen , 854 x 480 with clear interface.
-
Warranty 1 year
-
Free 14-Day returns
Description
Standard : ASTM A615/A AND 615M, DIN 488
Features
- Ability of testing concrete rebar scanner :-
- Large capacity rechargeable battery (6400mAh).
- High detection accuracy.
- High precision linear hall sensor for rebar spacing detection.
- Support stirrup spacing and diameter correction to improve the measurement accuracy of concrete cover depth.
- Professional PC software with intelligent analysis.
- Storage up to 5000 objects and 500,000 measuring point data.
- High power solid transmitting coil for strong anti-interference.
Technical Specifications :
| Model Number | NL 4041 X 003 |
| Alternate Code | LR – G150 |
| Applicable Change | Ø6mm ~ Ø50mm |
| Protective Layer Thickness Range | First Stage : 6 – 90 mm, Second Stage : 6 – 180 mm |
| Max. Allowable Deviation on Concrete Cover Depth | ±1 (mm) : 6-80 ±2 (mm) : 81 – 120 ±3 (mm) : 121 – 140 ±4 (mm) : 141 – 180 |
| Battery Lifetime | 38 Hours |
| Power | Built in Chargaable Lithium Battery |
| Mode Data Transmission | Bluetooth or USB |
| Dimension | 200mm (L) x 125mm(W) x 50mm (H) |
Specification
Overview
| Dimensions | 20 × 12.5 × 5 cm |
|---|---|
| Brand |
Nl Test |
| Model number |
NL 4041 X 003 |
