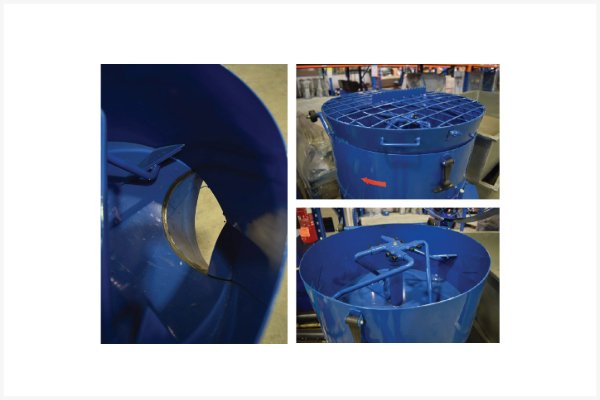

Concrete Pan Type Mixer (Forced Speed) NL 4025 X / 008, 009 & 010
Used to prepare concrete specimens or mixtures, these pan type mixers ensure an uniform efficient fast mixture action. They are of easy & practical utilisation; suitable for laboratory & field purposes.
-
Warranty 1 year
-
Free 14-Day returns
Description
Standard: EN 12390-2
Making Concrete Specimens
The mixers are equipped with a manually controlled dischardge opening situated on the bottom part of the pan, for direct unloading of the mixture into a wheelbarrow or suitable container. The mixing blades & paddle can be adjusted in height; they are manufactured from special quality hardened steel to resist wear. The pan & the mixing gears have big thickness ratio, the gears are from hardened & rectified steel, the motor reducer is in oil-bath with Gleason conical coupling. Controls through magneto-thermic switch & release automatic coil contained in IP67 box.
Technical Specifications :
| Model Number | NL 4025 X / 008 | NL 4025 X / 009 | NL 4025 X / 010 |
| Mixture Capacity | 40-53 Liters | 60-80 Liters | 100-200 Liters |
| Pan Capacity (Volume) | 80 Liters | 120 Liters | 300 Liters |
| Pan Dimension | Ø 577 x 316 (H) mm | Ø 715 x 310 (H) mm | Ø 1016 x 402 (H) mm |
| Rotation Speed | 30 – 47 RPM | ||
| Packing Dimension | 650 (L) x 1010 (W) x 1200 (H) mm | 750 (L) x 1050 (W) x 1230 (H) mm | 1090 (L) x 1300 (W) x 1390 (H) mm |
| Overall Approx. Weight | 80 kg | 128 kg | 273 kg |
| Absorbed Power | 1.5 Hp | 2 Hp | 4 Hp |
| Power | 415 V, 3 ph,1.13 kW, 50 / 60 Hz | 415 V, 3 ph,1.5 kW, 50 / 60 Hz | 415 V, 3 ph, 3 KW, 50 / 60 Hz |
Specification
Overview
| Brand |
Nl Test |
|---|
| Voltage Supply |
415 V, 3 ph, 50 / 60 Hz |
|---|
